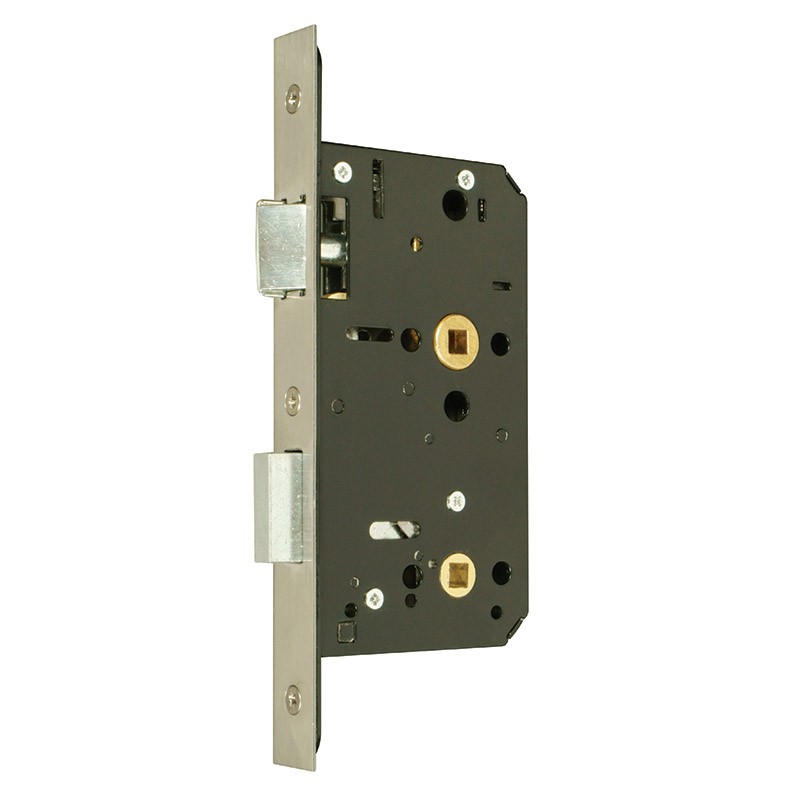

B5225 Lift to Lock
Description
DIN standard lift to lock for use on internal wooden hinged doors. Conforms to DDA requirements. Fire rated to BS EN 1634-1:2000. Latchbolt operated by lever handle from either side Deadbolt thrown by upward movement of lever handle from inside Deadbolt and latchbolt withdrawn by downward movement of lever handle from inside. Supplied with striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available.
Notes
Operation
Latchbolt operated by lever handle from either side Deadbolt thrown by upward movement of lever handle from inside Deadbolt and latchbolt withdrawn by downward movement of lever handle from inside
Case
Steel, powder coated black, pierced to accept 38mm centre bolt through fixing furniture and 38mm centre bolt through fixing escutcheons
Forend
Stainless steel: Satin or Polished. Brass: Satin or Polished and BMA. Available square or radiused - please specify
Striker Plate
Finished to match forend
Latchbolt
Brass, reversible, zinc plated. Projection 11mm
Deadbolt
Brass, zinc plated. Throw 12mm
Follower
Brass, to suit 8mm square spindle. One-way action. Sprung to suit sprung lever handle furniture For unsprung lever handle furniture heavy duty springing should be specified
Rebate Units To Suit
B72/1501/S 13mm, B72/1502/S 19mm, B72/1503/S 25mm
Additional information
| Lock Case | 90mm |
|---|---|
| Backset | 60mm |
| Centres | 78mm |
