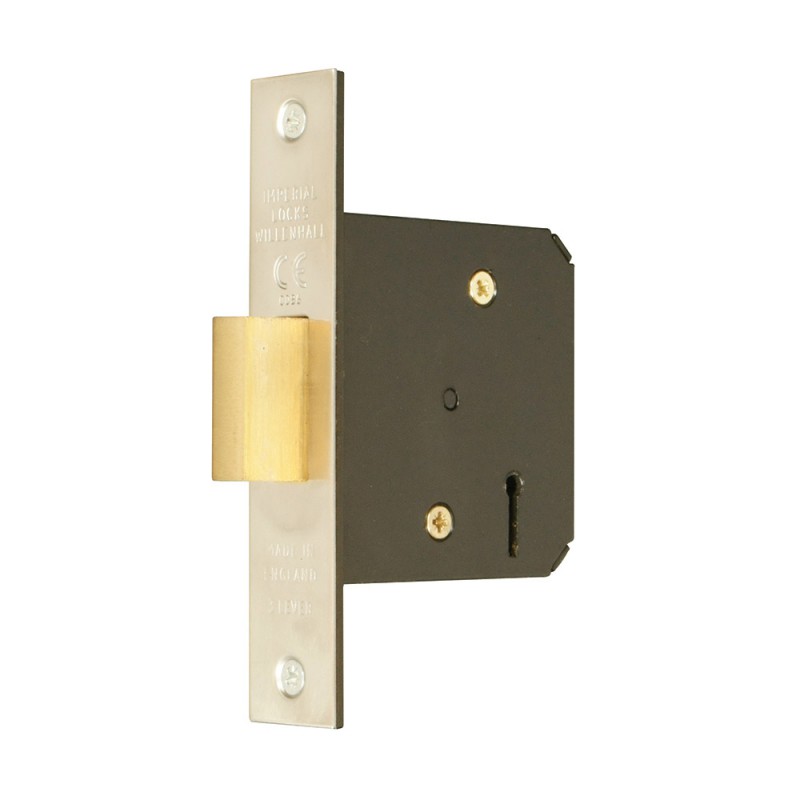

G3004 3 Lever Motice Deadlock
Description
3 Lever mortice deadlock for use on internal wooden hinged doors providing a standard level of security. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Deadbolt operated by key from either side. Supplied with 2 keys, striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available. 100 standard differs.
Notes
Operation
Deadbolt operated by key from either side
Striker Plate
Type C
Deadbolt
Brass. Throw 16mm
Differs
100 standard differs numbered 301-400
Rebate Units To Suit
G3054-13mm G3055-19mm G3056-25mm
Box
for Type 'C' Strike, DUSTBOX2 - Sold Separately
Additional information
| Lock Case | 63mm, 76mm, 101mm |
|---|---|
| Backset | 45mm, 57mm, 82mm |
