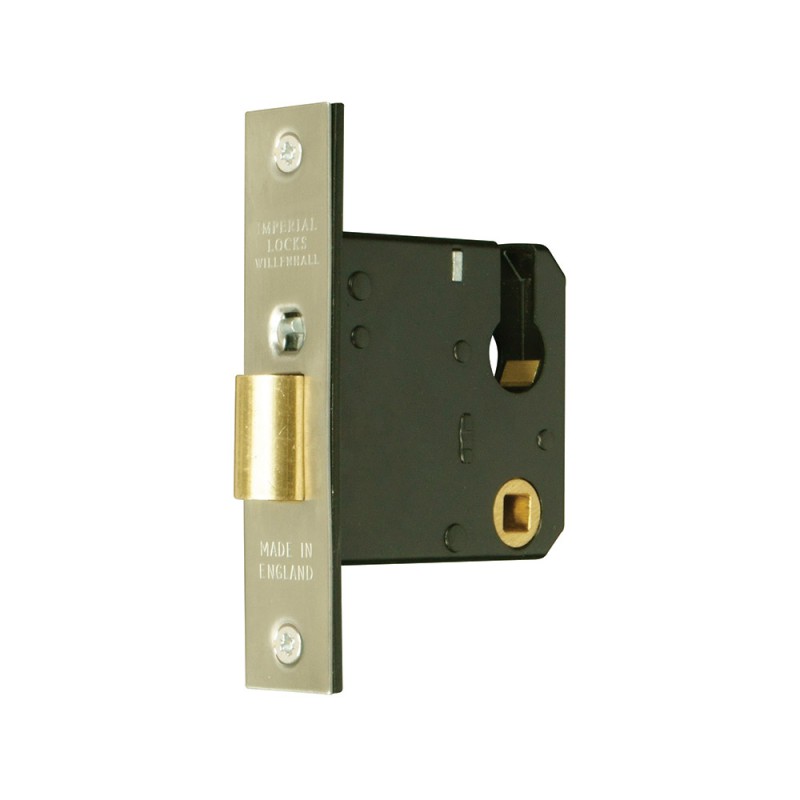

G7788 Euro-Profile Cylinder Mortice Night Latch
Description
Euro profile cylinder mortice night suitable for use on external entrance wooden hinged door providing automatic locking complete with hold back function. Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Latchbolt operated by key from outside and turn knob inside using a single cylinder or by key from either side using a double cylinder. The bolt may be held in the withdrawn position by a snib in the forend. Supplied with striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available.
Notes
Operation
Latchbolt operated by key from outside and turn knob inside using a single cylinder or by key from either side using a double cylinder. The bolt may be held in the withdrawn position by a snib in the forend.

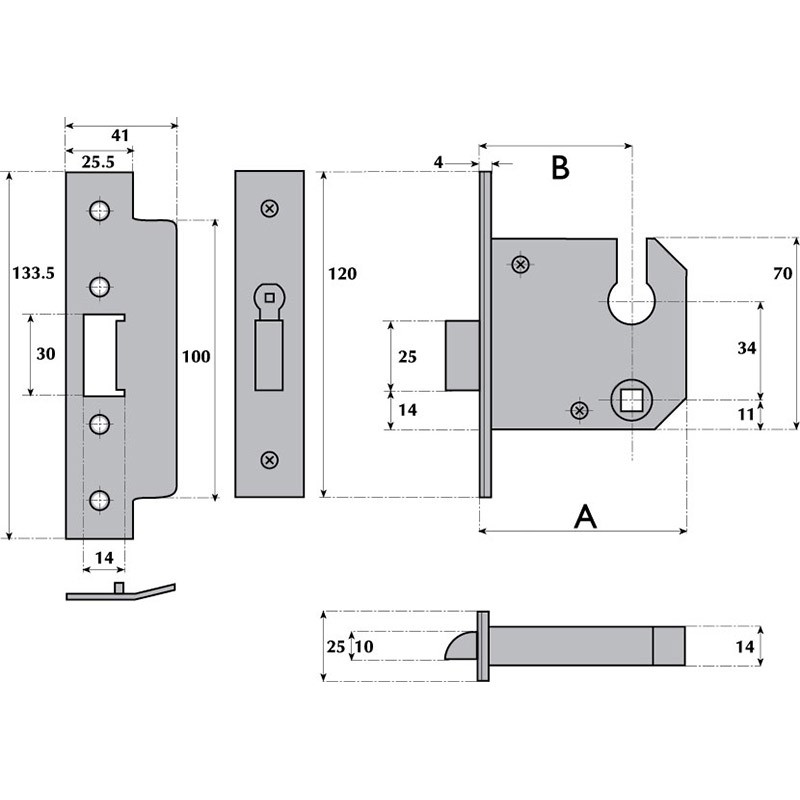

Striker Plate
Type W
Latchbolt
Brass, reversible. Projection 12mm
Follower
Brass, to suit 8mm square spindle. One-way action. Single sprung. Not suitable for use with unsprung lever handle furniture
Cylinder
Not supplied. May be used with the following cylinders: a) Key one side such as Guardian G9000 b) Key either side such as Guardian G9001
Springing
Not supplied. May be used with the following cylinders: a) Key one side such as Guardian G9000 b) Key either side such as Guardian G9001
Rebate Units To Suit
On application
Additional information
| Lock Case | 65mm, 77.5mm |
|---|---|
| Backset | 47.5mm, 60mm |
