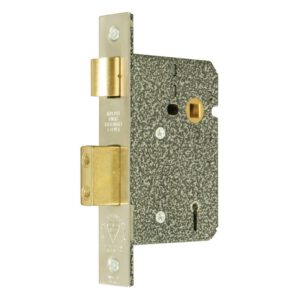

G5004 5 Lever Mortice Deadlock
Description
5 Lever mortice deadlock for use on external wooden hinged doors providing a high level of security. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Deadbolt operated by key from either side. Supplied with 2 keys, striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available. 200 standard differs.
Notes
Operation
Deadbolt operated by key from either side
Striker Plate
Box, Type M
Deadbolt
Brass, with two hardened steel rollers. Throw 16mm
Differs
200 standard differs numbered 001-200
Rebate Units To Suit
G3054-13mm G3055-19mm G3056-25mm
Additional information
| Lock Case | 63mm, 76mm, 101mm |
|---|---|
| Backset | 45mm, 57mm, 82mm |
