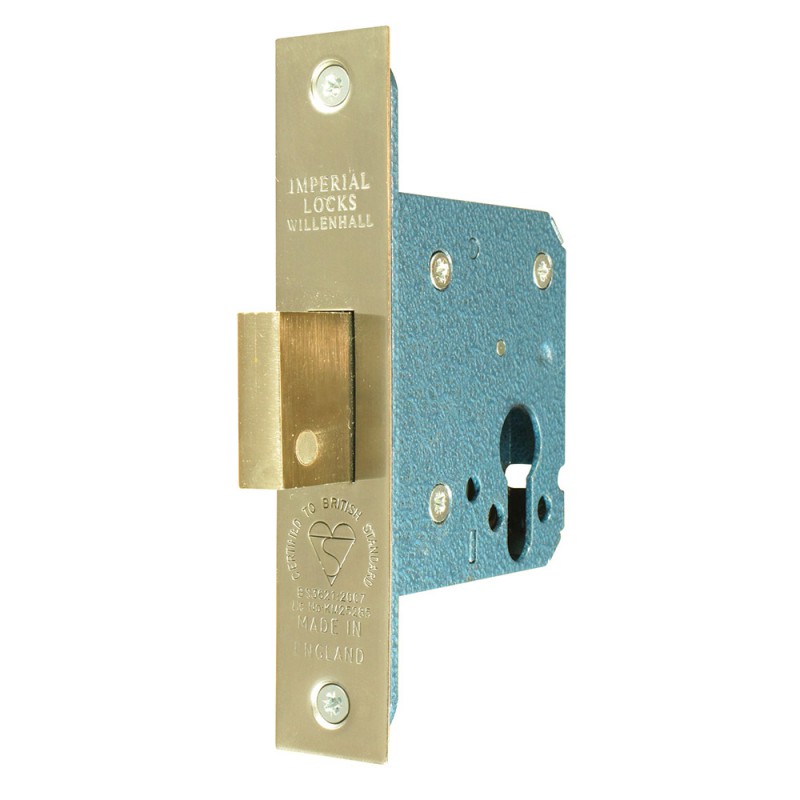

G7134 BS3621 British Standard Euro-Profile Cylinder Mortice Deadlock
Description
Kitemarked BS3621 British standard euro profile cylinder mortice deadlock for use on external wooden hinged doors providing the maximum level of security. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Deadbolt operated by key from either side. Supplied with striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available.
Notes
Operation
Deadbolt operated by key from either side
Case
Hardened steel. Pierced to accept 20mm and 38mm centre bolt through fixing escutcheons
Striker Plate
Box, Type M
Deadbolt
Laminated steel. Throw 20mm
Cylinder
Supplied on request. Successfully type-tested for conformity to all of the requirements of BS3621:2007 Thief Resistant Locks when fitted with Kaba AP2000 double cylinder and G9527 security escutcheons
Springing
Supplied on request. Successfully type-tested for conformity to all of the requirements of BS3621:2007 Thief Resistant Locks when fitted with Kaba AP2000 double cylinder and G9527 security escutcheons
Rebate Units To Suit
G3070-13mm G3071-19mm G3072-25mm
Fixing
Forend fixing centres 114.40mm
Additional information
| Lock Case | 63mm, 76mm |
|---|---|
| Backset | 45mm, 57mm |
