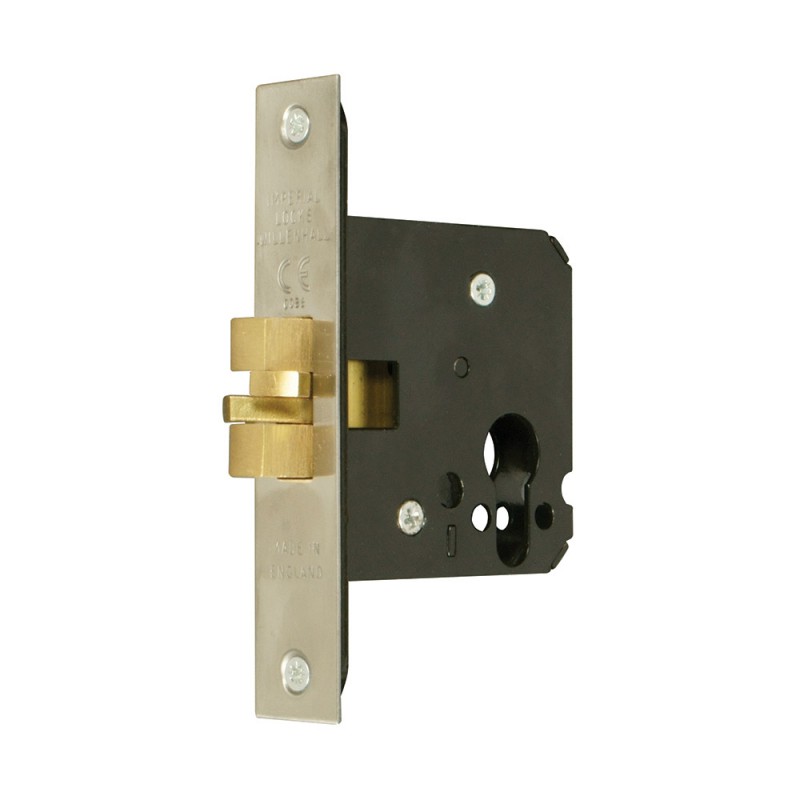

G7006 Euro-Profile Cylinder Mortice Sliding Door Lock
Description
Euro profile cylinder mortice sliding door lock for use on external wooden sliding doors providing a high level of security. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Bolt operated by key from either side using a double cylinder or by key outside and thumb turn inside using a single cylinder with turn. Supplied with striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available.
Notes
Operation
Bolt operated by key from either side using a double cylinder or by key outside and thumb turn inside using a single cylinder with turn
Case
Pierced to accept 20mm and 38mm centre bolt through fixing escutcheons
Striker Plate
Type C
Deadbolt
Brass, expanded claw. Throw 14mm
Cylinder
Not supplied. May be used with the following cylinders: a) Key either side such as Guardian G9001 b) Turn inside and key outside such as Guardian G9002
Springing
Not supplied. May be used with the following cylinders: a) Key either side such as Guardian G9001 b) Turn inside and key outside such as Guardian G9002
Rebate Units To Suit
G3054-13mm G3055-19mm G3056-25mm
Box
Not Available

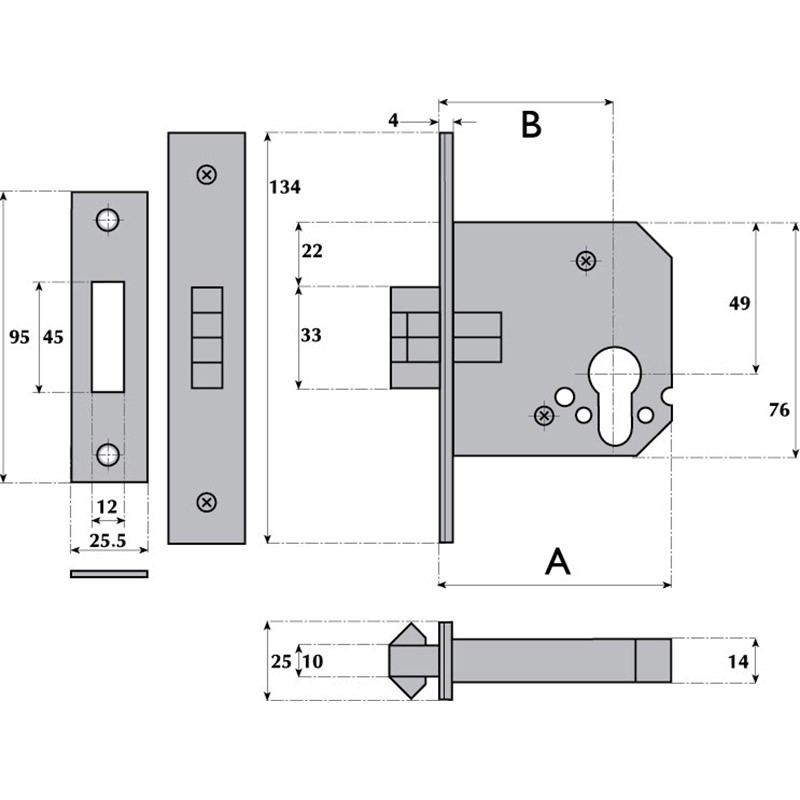

Additional information
| Lock Case | 76mm, 101mm |
|---|---|
| Backset | 57mm, 82mm |
