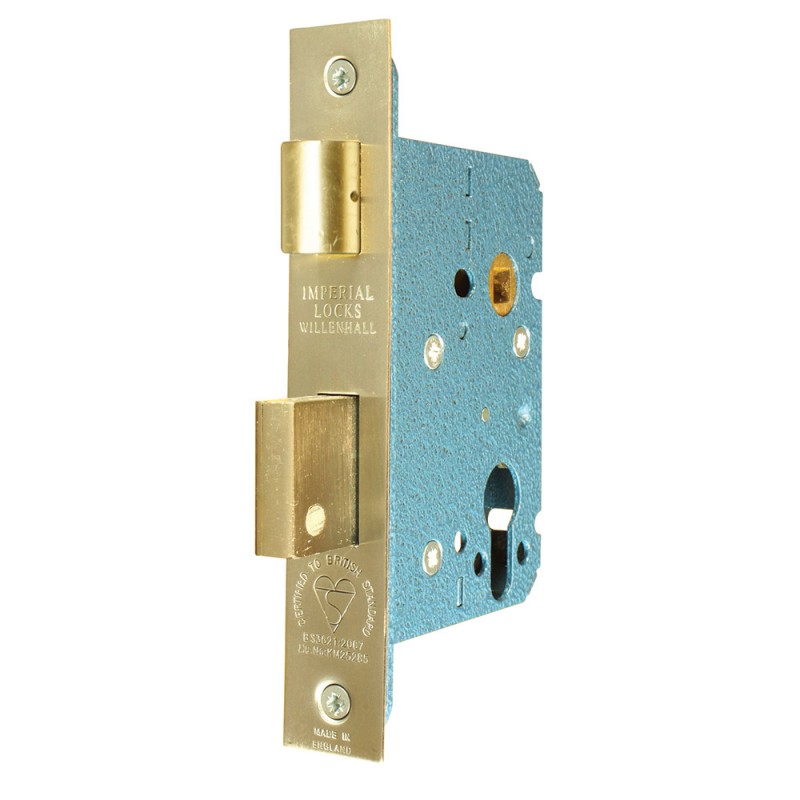

G7130 BS3621 British Standard Euro-Profile Cylinder Mortice Sashlock

    Fire Tested10 Year WarrantyStandard SpringPerformanceReversible* Do not use line drawing to mortice door – for guidance only

Description

Kitemarked BS3621 British standard euro profile cylinder mortice sashlock for use on external wooden hinged doors providing the maximum level of security. Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Latchbolt operated by lever handle from either side. Deadbolt operated by key from either side. Supplied with striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available.

Notes

Operation

Latchbolt operated by lever handle from either side. Deadbolt operated by key from either side

Case

Hardened steel. Pierced to accept 20mm and 38mm centre bolt through fixing escutcheons Pierced to accept 38mm centre horizontally opposed bolt through fixing furniture

Striker Plate

Box, Type K

Latchbolt

Brass, easily reversible. Projection 12mm

Deadbolt

Laminated steel. Throw 20mm

Follower

Brass, to suit 8mm square spindle. One-way action Heavier springing available

Cylinder

Supplied on request. Successfully type-tested for conformity to all of the requirements of BS3621:2007 Thief Resistant Locks when fitted with Kaba AP2000 double cylinder and G9527 security escutcheons

Springing

Supplied on request. Successfully type-tested for conformity to all of the requirements of BS3621:2007 Thief Resistant Locks when fitted with Kaba AP2000 double cylinder and G9527 security escutcheons

Rebate Units To Suit

G3067-13mm G3068-19mm G3069-25mm

Fixing

Forend fixing centres 130mm

Additional information

Lock Case

63mm, 76mm

Backset

45mm, 57mm

Centres

51mm
