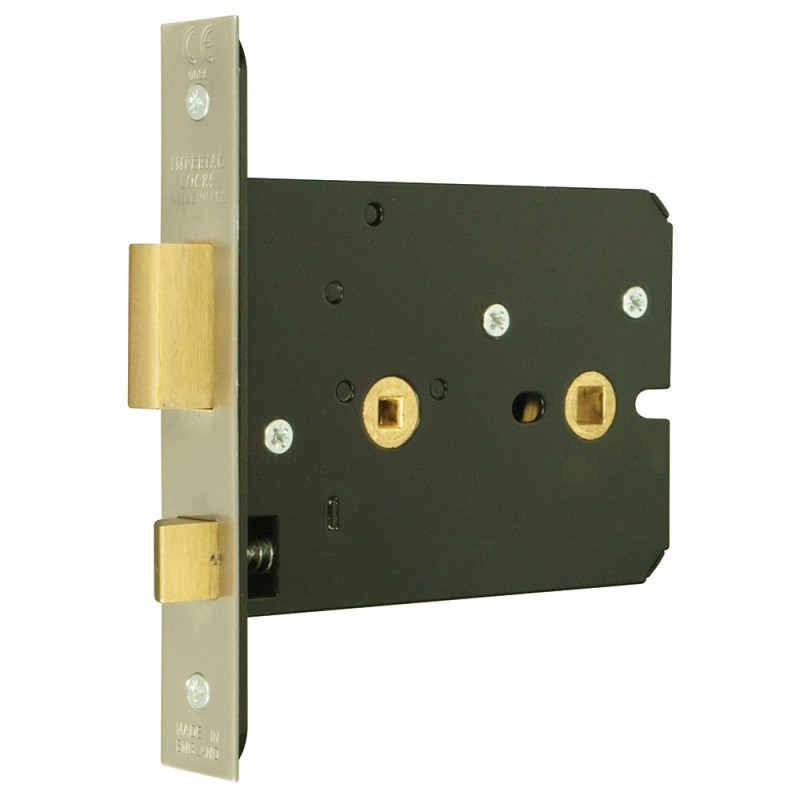

G8024 Horizontal Bathroom Mortice Lock
Description
Horizontal bathroom mortice lock for use on wooden hinged doors. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Latchbolt operated by knob from either side Deadbolt operated by turn from either side. Supplied with striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available.
Notes
Operation
Latchbolt operated by knob from either side Deadbolt operated by turn from either side
Case
Pierced to accept 38mm centre horizontally opposed bolt through fixing furniture
Striker Plate
Type B
Latchbolt
Brass, reversible. Projection 12mm
Deadbolt
Brass, Throw 14mm
Latchbolt Follower
Brass, to suit 8mm square spindle. Two-way action
Deadbolt Follower
Brass, to suit 5mm square spindle
Rebate Units To Suit
G3057-13mm G3058-19mm G3059-25mm
Box
DUSTBOX1 - Sold Separately

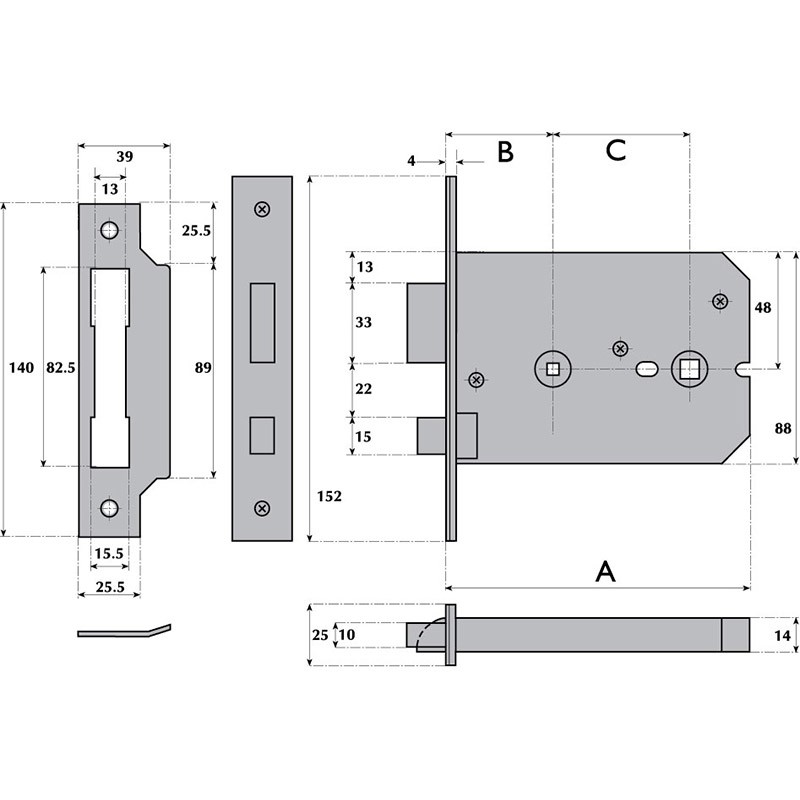

Additional information
| Lock Case | 127mm |
|---|---|
| Backset | 45mm |
| Centres | 57mm |
