G3006 3 Lever Mortice Sliding Door Lock
Description
3 Lever mortice sliding door lock for use on internal wooden sliding doors providing a standard level of security. CE Marked door lock Fire tested to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Bolt operated by key from either side. Supplied with 2 keys, striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available. 100 standard differs.
Notes
Operation
Bolt operated by key from either side
Striker Plate
Type C
Deadbolt
Brass, expanded claw. Throw 16mm
Differs
100 standard differs numbered 301-400
Rebate Units To Suit
G3054-13mm G3055-19mm G3056-25mm
Box
Not Available

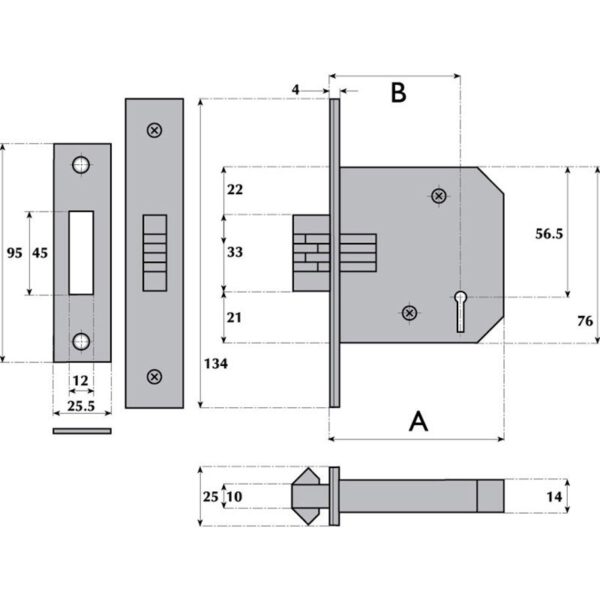

Additional information
| Lock Case | 76mm, 101mm |
|---|---|
| Backset | 57mm, 82mm |
