G5011 5 Lever Horizontal Mortice Lock
Description
5 Lever horizontal mortice lock for use on external wooden hinged doors providing a high level of security. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Latchbolt operated by knob from either side Deadbolt operated by key from either side. Supplied with 2 keys, striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available. 200 standard differs.
Notes
Operation
Latchbolt operated by knob from either side Deadbolt operated by key from either side
Case
Pierced to accept 38mm centre horizontally opposed bolt through fixing furniture
Striker Plate
Type B with dust box DB1
Latchbolt
Brass, reversible. Projection 12mm
Deadbolt
Brass, with two hardened steel rollers. Throw 16mm
Follower
Brass, to suit 8mm square spindle Two-way action
Differs
200 standard differs numbered 001-200
Rebate Units To Suit
G3057-13mm G3058-19mm G3059-25mm
Box
DUSTBOX1 - Included

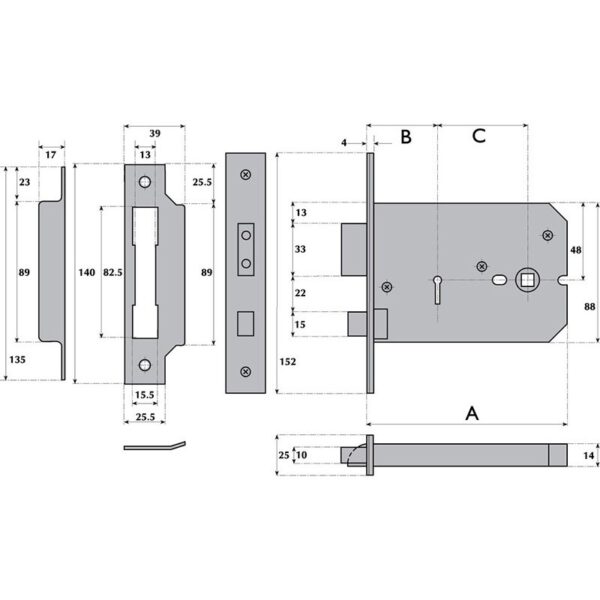

Additional information
| Lock Case | 127mm |
|---|---|
| Backset | 45mm |
| Centres | 57mm |
