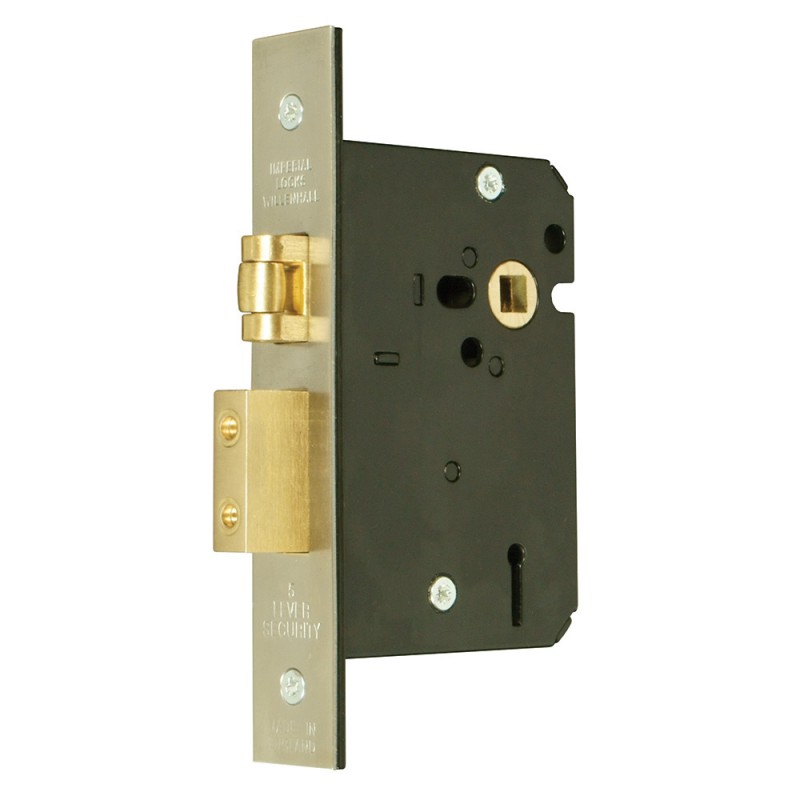

G5002 5 Lever Mortice Roller Bolt Sashlock
Description
5 Lever mortice roller bolt sashlock for use on external wooden hinged doors providing a high level of security. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Roller bolt operated by lever handle from either side Deadbolt operated by key from either side. Supplied with 2 keys, striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available. 200 standard differs.
Notes
Operation
Roller bolt operated by lever handle from either side Deadbolt operated by key from either side
Case
76mm and 101mm sizes pierced to accept 38mm centre horizontally and 38mm centre diagonally opposed bolt through fixing furniture; 63mm size pierced diagonally only
Striker Plate
Type A with dust box DB1
Latchbolt
Brass, roller bolt to suit either hand. Projection 12mm
Deadbolt
Brass, with two hardened steel rollers. Throw 16mm
Follower
Brass, to suit 8mm square spindle. One-way action. Sprung to suit sprung lever handle furniture. For unsprung lever handle furniture heavy duty springing should be specified
Differs
200 standard differs numbered 001-200
Rebate Units To Suit
RB/G3051-13mm RB/G3052-19mm RB/G3053-25mm

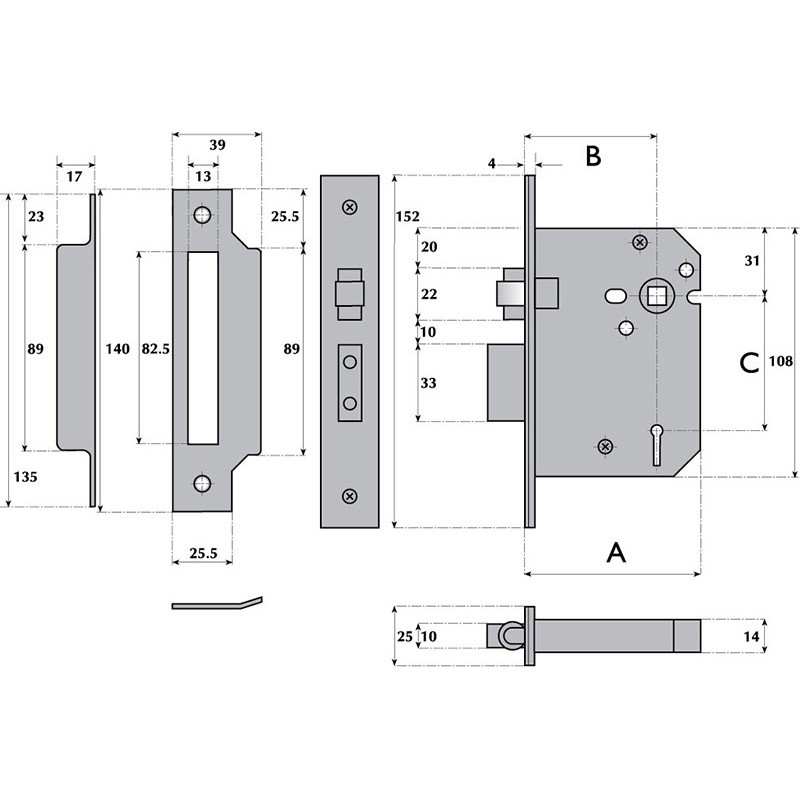

Additional information
| Lock Case | 63mm, 76mm, 101mm |
|---|---|
| Backset | 45mm, 57mm, 82mm |
| Centres | 57mm |
