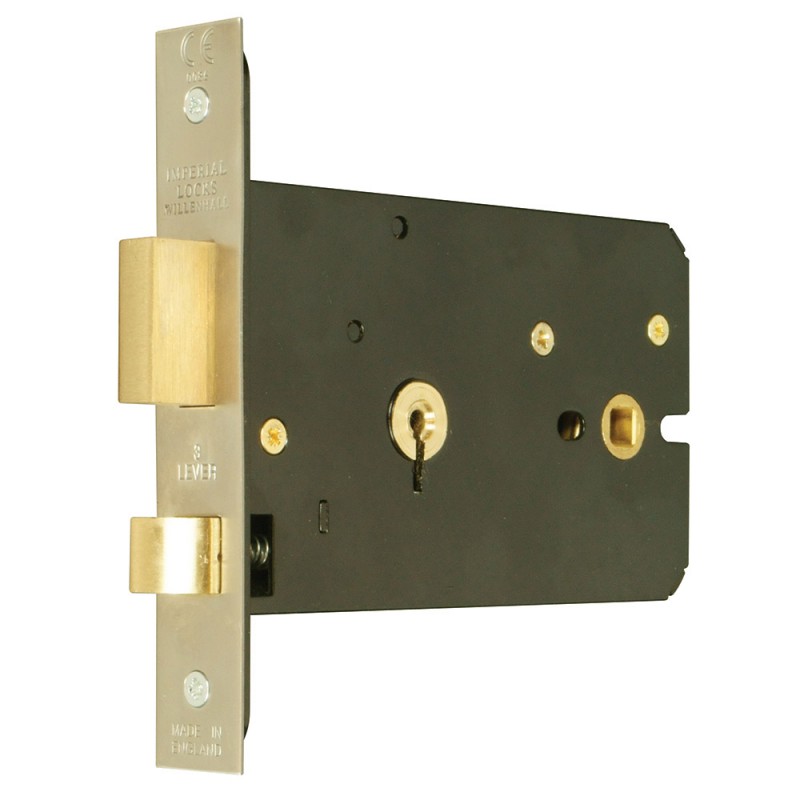

MK3012 Master Keyed 3 Lever Horizontal Mortice Lock

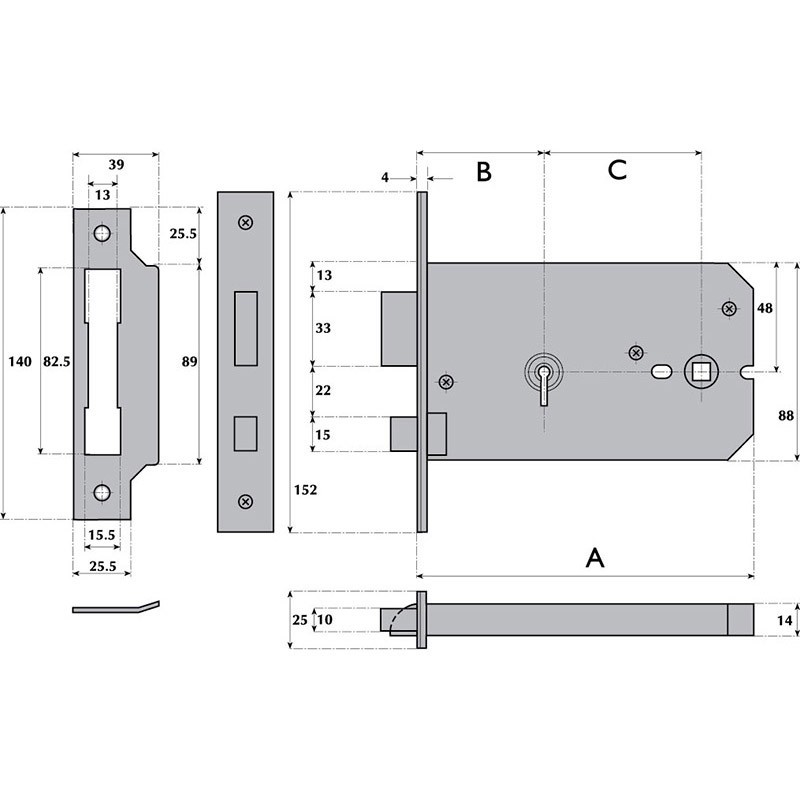

    Fire Tested10 Year WarrantyStandard SpringHeavy SpringCEPerformanceReversible* Do not use line drawing to mortice door – for guidance only
SKU: MK3012 Category:

Description

Master keyed 3 Lever horizontal mortice lock for use on internal wooden hinged doors providing a standard level of security. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Latchbolt operated by knob from either side Deadbolt operated by key from either side. Supplied with 2 keys, striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available. Available master and sub and grand master keyed.

Notes

Operation

Latchbolt operated by knob from either side Deadbolt operated by key from either side

Case

Pierced to accept 38mm centre horizontally opposed bolt through fixing furniture

Striker Plate

Type B

Latchbolt

Brass, reversible. Projection 12mm

Deadbolt

Brass. Throw 16mm

Follower

Brass, to suit 8mm square spindle Two-way action

Differs

Available master and sub and grand master keyed

Rebate Units To Suit

G3057-13mm G3058-19mm G3059-25mm

Box

DUSTBOX1 - Sold Separately

Additional information

Lock Case

151mm

Backset

57mm

Centres

70mm
