B2501-76-P Euro-Profile Cylinder Sashlock
Description
Euro profile cylinder mortice sashlock for use on external wooden hinged doors providing a high level of security. CE Marked door lock Fire rated to BS EN 1634-1:2000 & Performance rated to BS EN 12209. Latchbolt operated by lever handle from either side. Deadbolt operated by key from either side using a double cylinder or by key outside and thumbturn inside using a single cylinder with turn. Supplied with striker plate and fixing screws. Finishes stainless steel (SS) or satin brass (SB). Other finishes available.
Notes
Please specify the centres required.
49mm or 57mm
Operation
Latchbolt operated by lever handle from either side. Deadbolt operated by key from either side using a double cylinder or by key outside and thumbturn inside using a single cylinder with turn
Case
Steel, powder coated black, pierced to accept 38mm centre bolt through fixing escutcheons Pierced to accept 38mm centre horizontally opposed bolt through fixing furniture
Forend
Stainless steel: Satin or Polished. Brass: Satin or Polished and BMA. Available square or radiused - please specify
Striker Plate
Finished to match forend
Latchbolt
Brass, reversible without opening case. Projection 11mm
Deadbolt
Brass, with two hardened steel rollers. Throw 12mm
Follower
Brass, to suit 8mm square spindle. One-way action. Sprung to suit sprung lever handle furniture
Cylinder
Not supplied. May be used with the following cylinders: a) Key either side b) Turn inside and key outside
Springing
Not supplied. May be used with the following cylinders: a) Key either side b) Turn inside and key outside
Rebate Units To Suit
B1501/S 13mm, B1502/S 19mm, B1503/S 25mm

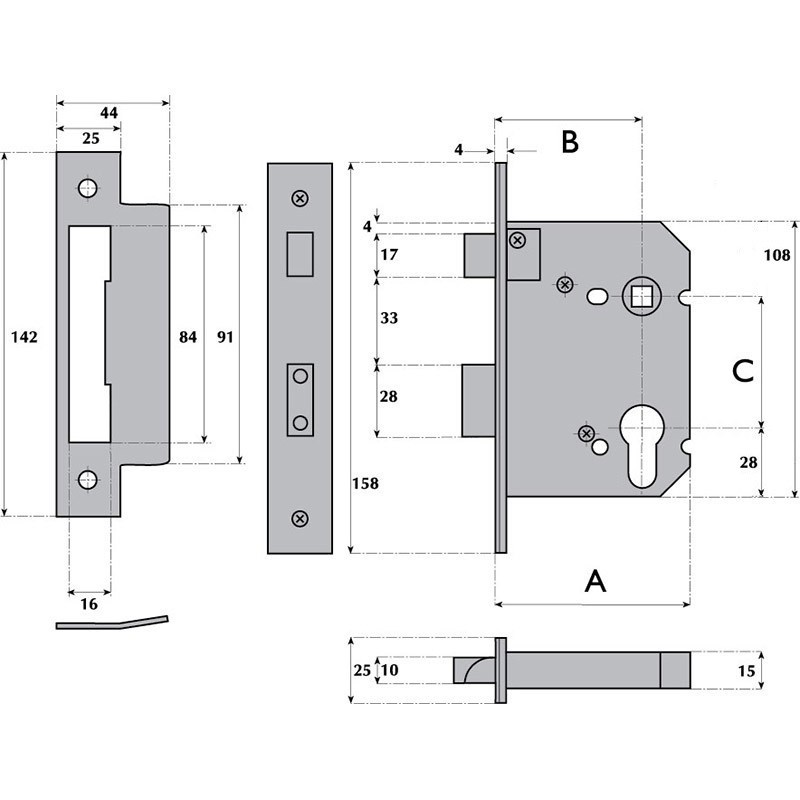

Additional information
| Lock Case | 78mm |
|---|---|
| Backset | 57mm |
| Centres | 49mm, 57mm |
